Dynasyst - Orfitube

Product Group Summary

Orfitube tubes are lightweight outrigger attachments used to create mobilization orthoses. These tubes are easy to bend into shape and cut to length. These outriggers can be securely attached to any type of base orthosis. Pre coiled wiring saves time and energy in formng more difficult orthoses.

Views Of The Products Below



Item # Dynasyst - Orfitube Price Qty.
55426 Orfitube Kit $109.99

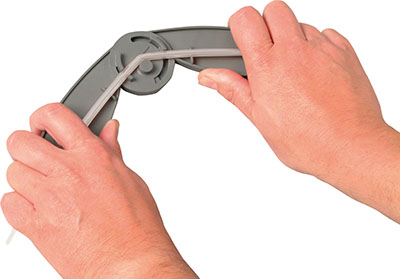

Orfitube Kit:
Orfitube is a thermoplastic tube intended for the creation of dynamic hand orthoses with outrigger and braided elastic. These tubes glide and protect the braided elastic and serve as a directional pully. The Orfitube Kit includes: 10 tubes that are 330mm (13") long; 3 different types of elastic thread on a spool with different degrees of elastic strength; 1 spool of polyester monofilament for an optimal gliding effect; 2 bending wires.

Dimensions: 18.50" x 2.20" x 4.70"

Weight: 0.44 lbs

UPC: 714905075581

Notice: Typically ships in 1-2 days.



55426 Download Materials

View Manual

Sales Sheet

Download Image
55427 Orfitubes (10 pcs.) and Bending Wires (2 pcs.) $47.49
Orfitubes (10 pcs.) and Bending Wires (2 pcs.):
Orfitube is a thermoplastic tube intended for the creation of dynamic hand orthoses with outrigger and braided elastic. These tubes glide and protect the braided elastic and serve as a directional pully. This kit includes: 10 tubes that are 330mm (13") long; 2 bending wires

Dimensions: 6.00" x 1.00" x 4.00"

Weight: 0.20 lbs

UPC: 714905075598

Notice: Typically ships in 1-2 days.



55427 Download Materials

View Manual

Sales Sheet

Download Image
55429 Elastic Thread - Max Resistance 7 oz. (200 g) - 30ft (10m) $22.49
Elastic Thread - Max Resistance 7 oz. (200 g) - 30ft (10m):

Currently out of stock.
Expected in Stock: 2 weeks

This Elastic Thread has a max resistance of 7 oz. (200g) and it is 30ft (10m) in length. It shows no signs of aging after 6 weeks of maximum stretching. This thread is ideal for supporting weak muscles of the fingers.

Dimensions: 6.00" x 1.00" x 4.00"

Weight: 0.20 lbs

UPC: 714905075611

Notice: Typically ships in 1-2 days.



55429 Download Materials

View Manual

Sales Sheet

Download Image
55430 Elastic Thread - Max Resistance 14 oz. (400 g) - 30ft (10m) $20.99
Elastic Thread - Max Resistance 14 oz. (400 g) - 30ft (10m):
This Elastic Thread has a max resistance of 14 oz. (400g) and it is 30ft (10m) in length. It shows no signs of aging after 6 weeks of maximum stretching. This thread is ideal for most dynamic finger orthoses.

Dimensions: 5.00" x 2.00" x 3.50"

Weight: 0.20 lbs

UPC: 714905075628

Notice: Typically ships in 1-2 days.



55430 Download Materials

View Manual

Sales Sheet

Download Image
55431 Elastic Thread - Max Resistance 21 oz. (600 g) - 30ft (10m) $27.49
Elastic Thread - Max Resistance 21 oz. (600 g) - 30ft (10m):
This Elastic Thread has a max resistance of 21 oz. (600g) and it is 30ft (10m) in length. It shows no signs of aging after 6 weeks of maximum stretching. This thread is ideal for dynamic wrist extension orthoses or for very persistent finger contractures.

Dimensions: 5.00" x 2.00" x 3.00"

Weight: 0.20 lbs

UPC: 714905075635

Notice: Typically ships in 1-2 days.



55431 Download Materials

View Manual

Sales Sheet

Download Image
55432 Orfitube Ends (20 pcs.) $64.99
Orfitube Ends (20 pcs.):
Orfitube Ends are Chromium-plated tube ends that fit on all Orfitubes. These end pieces reduce the rubbing of the elastic thread with the tube edge to a minimum.

Dimensions: 6.70" x 0.80" x 3.90"

Weight: 0.04 lbs

UPC: 714905075642

Notice: Typically ships in 1-2 days.



55432 Download Materials

View Manual

Sales Sheet

Download Image
Item # Dynasyst - Orfitube Price Qty.
55433 Orfitube Adjuster Kit $52.49
Orfitube Adjuster Kit:
The Single Orfitube Adjuster is a structural unit placed on hand orthoses to give the orthoses added adjustable and dynamic action. It gives full control of the longitudinal and lateral positions of the Orfitubes. Its compact design allows you to fix one individual adjuster for each finger. The adjuster is elegant, lightweight and very cost-effective.

Dimensions: 15.00" x 0.80" x 4.50"

Weight: 0.28 lbs

UPC: 714905075659

Notice: Typically ships in 1-2 days.



55433 Download Materials

View Manual

Sales Sheet

Download Image
55434 Single Orfitube Adjuster (5 pcs.) + Allen wrench $47.49
Single Orfitube Adjuster (5 pcs.) + Allen wrench:
The Single Orfitube Adjuster is a structural unit placed on hand orthoses to give the orthoses added adjustable and dynamic action. It gives full control of the longitudinal and lateral positions of the Orfitubes. Its compact design allows you to fix one individual adjuster for each finger. The adjuster is elegant, lightweight and very cost-effective. This kit includes 5 adjusters and 1 Allen Wrench.

Dimensions: 6.70" x 0.80" x 3.90"

Weight: 0.07 lbs

UPC: 714905075666

Notice: Typically ships in 1-2 days.



55434 Download Materials

View Manual

Sales Sheet

Download Image

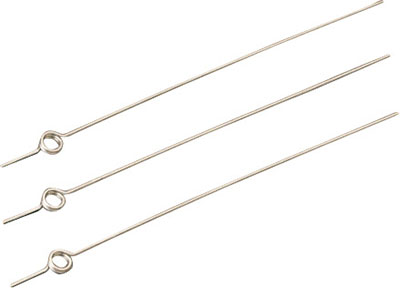

55437 Knuckle Bender Coil Spring (10 pcs.) $22.99
Knuckle Bender Coil Spring (10 pcs.):
The Knuckle Bender Coil Springs are designed to assist the intrinsic muscle weakness. Ideal for those with ulnar nerve palsy. The spring can be turned upside down to increase spring power. Its torque force at full finger extension is ca. 1000 g. cm. This kit includes 10 knuckle bender coils.

Dimensions: 6.50" x 0.13" x 4.00"

Weight: 0.20 lbs

UPC: 714905075697

Notice: Typically ships in 1-2 days.




55439 Wrist Extension Coil Spring (10 pcs. - 5 left + 5 right) $32.49
Wrist Extension Coil Spring (10 pcs. - 5 left + 5 right):
The Wrist Extension Coil Springs come in 10 pieces with 5 springs designed for the left hand and 5 springs designed for the right hand. The torque force when tightened over an angle of 130 degrees is 5000 g. cm. The gauge is 1.5 mm (1/16") while the coil diameter is 15 mm (3/5").

Dimensions: 8.00" x 0.13" x 7.00"

Weight: 0.50 lbs

UPC: 714905075710

Notice: Typically ships in 1-2 days.



55439 Download Materials

View Manual

Sales Sheet

Download Image
55443 Stainless Steel Spring Wire - 45ft (15m) $47.49
Stainless Steel Spring Wire - 45ft (15m):
The Stainless Steel Spring Wire is used to design personal coil springs and outriggers. Its length is 15 m (45 ft) and its thickness is 1 mm (1/24").

Dimensions: 9.00" x 0.50" x 7.00"

Weight: 0.50 lbs

UPC: 714905075758

Notice: Typically ships in 1-2 days.



55443 Download Materials

View Manual

Sales Sheet

Download Image
