Therapeutic Lasers

Fully functional device with independent control over all parameters. Display of dosage in choice of joules or joules/cm². Continuous and pulsed treatment modes. Real time feedback of dosage delivered. Useful selection of clinical indications & user defined protocols. Choice of 8 interchangeable Laser Diode and Cluster Applicators with power ranging from 100mW-1440mW (sold separately). Electronic Signature Recognition allows each laser applicator to be used in a "plug-and-use" format. Laser Therapy can be controlled from the laser applicator. Lightweight design, along with battery-powered option and custom designed mobile carrying bag, make transport easy. Unit uniquely designed for table top, wall mount or mobile use. Laser protective eyewear included (2x).

Fully functional device with independent control over all parameters. Display of dosage in choice of joules or joules/cm². Continuous and pulsed treatment modes. Real time feedback of dosage delivered. Useful selection of clinical indications & user defined protocols. Choice of 8 interchangeable Laser Diode and Cluster Applicators with power ranging from 100mW-1440mW (sold separately). Electronic Signature Recognition allows each laser applicator to be used in a "plug-and-use" format. Laser Therapy can be controlled from the laser applicator. Lightweight design, along with battery-powered option and custom designed mobile carrying bag, make transport easy. Unit uniquely designed for table top, wall mount or mobile use. Laser protective eyewear included (2x).

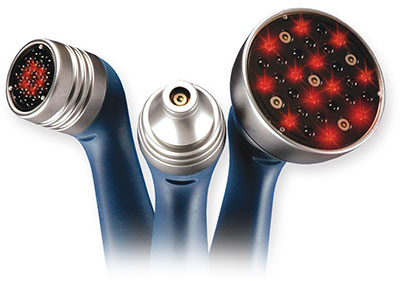

Single Laser Diode laser applicator ideal for treatment areas from 1cm2 to 4cm2. 850 nm Single Diode Laser 100mW.

Single Laser Diode laser applicator ideal for treatment areas from 1cm2 to 4cm2. 850 nm Single Diode Laser 200mW.

Single Laser Diode laser applicator ideal for treatment areas from 1cm2 to 4cm2. 820 nm Single Diode Laser 300mW.

9 Diode Cluster laser applicator ideal for treatment areas from 5cm2 to 10cm2. Four LEDs and five Laser Diodes. 9 Diode Cluster 540mW: 5 x 850 nm 100mW Laser, 4 x 670 nm 10mW LED.

9 Diode Cluster laser applicator ideal for treatment areas from 5cm2 to 10cm2. Four LEDs and five Laser Diodes. 9 Diode Cluster 1040mW: 5 x 850 nm 200mW Laser, 4 x 670 nm 10mW LED.

13 Diode Cluster laser applicator ideal for treatment areas from 5cm2 to 10cm2. Seven LEDs, three SLDs and three Laser Diodes. 13 Diode Cluster 415mW: 3 x 850 nm 100mW Laser, 3 x 950 nm 15mW SLD, 7 x 670 nm 10mW LED.

13 Diode Cluster laser applicator ideal for treatment areas from 5cm2 to 10cm2. Seven LEDs, three SLDs and three Laser Diodes. 13 Diode Cluster 715mW: 3 x 850 nm 200mW Laser, 3 x 950 nm 15mW SLD, 7 x 670 nm 10mW LED.

33 Diode Cluster laser applicator ideal for larger treatment areas up to 20cm2. Twelve LEDs, sixteen SLDs and five Laser Diodes. 33 Diode Cluster 1440 mW: 5 x 850 nm 200mW Laser, 8 x 880 nm 25mW SLD, 8 x 950 nm 15mW SLD, 12 x 670 nm 10mW LED.

Cart adapter.

Protective eyewear.

The 3B Laser PEN 500 is a high performance 500mw (808nm, infrared) laser. Treatment times are shortened, particularly in frequency mode. You can set the treatment time or the dose, and the 3B LASER PEN 500 mW will calculate the rest automatically. Making your everyday work easier. In addition to the pre-set frequencies (Nogier, Bahr, Reininger, Chakra), you can program frequencies yourself quickly from 0.1 to 10,000 Hz, and then store these settings in one of 20 storage locations. It features a display for left and right-handers, integrated point finder, continuous wave, and freely programmable frequencies. Included with the 3B Laser PEN 500 is an aluminum case, two pairs of laser goggles, two rechargeable battery packs (totaling 4 batteries), and an additional charger.

The 3B Laser PEN 200 is a high performance 200mw (808nm, infrared) laser. Treatment times are shortened, particularly in frequency mode. You can set the treatment time or the dose, and the 3B LASER PEN 200 mW will calculate the rest automatically. Making your everyday work easier. In addition to the pre-set frequencies (Nogier, Bahr, Reininger, Chakra), you can program frequencies yourself quickly from 0.1 to 10,000 Hz, and then store these settings in one of 20 storage locations. It features a display for left and right-handers, integrated point finder, continuous wave, and freely programmable frequencies. Included with the 3B Laser PEN 500 is an aluminum case, two pairs of laser goggles, two rechargeable battery packs (totaling 4 batteries), and an additional charger.

The Laser Shower Power Twin 21 is specially designed for use on large areas. It has more power and can cover a beam area of 55 cm² because of the 21 laser diodes built into the device. This means that even very hairy skin can be treated. The Laser power can be set at between 5 mW and 50mW. The continuous ray and multi-frequency mode have Nogier, Bahr, Reininger frequencies pre-set from the start. It has a switch adaptor with protective glass for hygienic and fast work. It can also be switched to a laser comb at the click of a button. It features individually adjustable laser settings via the color display. With the display settings you can choose between operation mode, dose and therapy time.

The new laser shower PowerTwin 21+ now has a maximum output of 2100 mW. This means that the performance has been doubled compared with the "smaller" model. 21 laser diodes irradiate an area of 55 cm² with a total diode output of 2100 mW (21 x 100 mW). The laser diodes are arranged in such a way that this area can be virtually homogeneously treated with laser light. The laser shower PowerTwin 21+ can be individually adjusted for special applications. The treatment dose, operating mode and therapy duration are shown on the color display. Apart from the operating mode CW (continuous-wave) and the proven multi-frequency range, additional frequency programs (such as e.g. Nogier, Bahr, Chakra and Reininger frequencies) are preset. Further frequencies can be chosen freely and programmed on 10 storage locations. A therapy tripod is optionally available for fatigue-free treatment.

The innovative 3B LASER Therapy is classified as low-level laser therapy, and is a painless and non-invasive treatment procedure. Light particles (photons) with high excitation density are conducted through fine optical fibers. The fibers do not puncture the skin, but are placed on the therapy points, radiating with high precision into the tissue which requires treatment. The 3B LASER can be used simultaneously on arbitrary point combinations on the body, in the head region and on the ear. Thus, corresponding methodically to the traditions of classical acupuncture. They are equivalent to acupuncture treatments in their cerebral and peripheral stimulation effects. Additionally, the laser beams stimulate complex healing processes in tissues. With the new 3B LASER you use up to 12 lasers simultaneously. An instrument version with red laser light (660 nm) is provided as a proven standard. You control and monitor the 3B LASER via the mobile touch screen (Control Touch Pad), which is connected with the laser unit by a radio interface. Because of this novel technology you have more flexibility in your practice routine as therapist. Additionally, you achieve optimum communication with your patients, who can always follow the treatment and thus be more actively involved in the elucidation and therapy. This creates additional trust and increases the therapy success. The daily work is greatly simplified so that both a bedside and remote observation of the therapy course is possible. The input and control of the treatment parameters is self-explanatory and can be easily delegated to qualified staff members. In addition to the preset programs and frequencies (Multi, Alpha, Nogier, Bahr, Reininger), individual patient programs can be easily entered, stored under the patient’s name and retrieved. In this manner, you can incidentally prepare your own database. Power (mW), frequencies (Hz), treatment time (min) and number of laser diodes can be arbitrarily selected. Via the colour display of the touch screen you are always informed of the important functions of the instrument, such as treatment time and dosage. Compared to previous models, the product design, ergonomics and the routing of the waveguides, in addition to the mobility, have been greatly improved. Moreover, the number of individual laser has been increased from 10 to 12. An extremely flexible treatment arm and intelligent cable routing ensure very good handling and optimum treatment. Adhesive applicators, which simplify affixing the waveguide and save the therapist valuable time, are provided as standard.The 3B LASER is mobile and can be used anywhere in your practice. A practical mount makes it possible to mount the instrument on existing tables or carts in a few seconds. Optionally, you can also order an attractive side table. For particularly small rooms a wall mount is included in the scope of delivery. Those who desire to use the same 3B LASER instrument in several rooms must only pull the laser unit out of the patented mount and to insert it in an additional mount in the next room. This Painless 3B LASER can be employed for nearly all acupuncture treatments and up to 12 acupuncture points can be simultaneously stimulated. Knee and back pains as well as headaches or migraines and allergies are the most common indications. The treatment times and the point selection criteria are equivalent to those of classical acupuncture. The 3B LASER can help treat a variety of different disease. For Orthopedics, the 3B LASER helps treat Tendinoses, Chondropathies, Aseptic osteonecroses, Oedemas, Fractures and Rheumatic joint diseases. For Dermatology, the 3B LASER helps treat Wound healing disorders, Neurodermitis, Common acne, Herpes and Age spots. For Pediatrics, the 3B LASER helps treat Hay fever, Headaches, Bronchitis, Allergic asthma, Eczemas/Neurodermitis, Wart irradiation and Enuresis.

The innovative 3B LASER Therapy is classified as low-level laser therapy, and is a painless and non-invasive treatment procedure. Light particles (photons) with high excitation density are conducted through fine optical fibers. The fibers do not puncture the skin, but are placed on the therapy points, radiating with high precision into the tissue which requires treatment. The 3B LASER can be used simultaneously on arbitrary point combinations on the body, in the head region and on the ear. Thus, corresponding methodically to the traditions of classical acupuncture. They are equivalent to acupuncture treatments in their cerebral and peripheral stimulation effects. Additionally, the laser beams stimulate complex healing processes in tissues. With this version of the new 3B LASER you have up to 12 channels of infrared light (785 nm). You control and monitor the 3B LASER via the mobile touch screen (Control Touch Pad), which is connected with the laser unit by a radio interface. Because of this novel technology you have more flexibility in your practice routine as therapist. Additionally, you achieve optimum communication with your patients, who can always follow the treatment and thus be more actively involved in the elucidation and therapy. This creates additional trust and increases the therapy success. The daily work is greatly simplified so that both a bedside and remote observation of the therapy course is possible. The input and control of the treatment parameters is self-explanatory and can be easily delegated to qualified staff members. In addition to the preset programs and frequencies (Multi, Alpha, Nogier, Bahr, Reininger), individual patient programs can be easily entered, stored under the patient’s name and retrieved. In this manner, you can incidentally prepare your own database. Power (mW), frequencies (Hz), treatment time (min) and number of laser diodes can be arbitrarily selected. Via the colour display of the touch screen you are always informed of the important functions of the instrument, such as treatment time and dosage. Compared to previous models, the product design, ergonomics and the routing of the waveguides, in addition to the mobility, have been greatly improved. Moreover, the number of individual laser has been increased from 10 to 12. An extremely flexible treatment arm and intelligent cable routing ensure very good handling and optimum treatment. Adhesive applicators, which simplify affixing the waveguide and save the therapist valuable time, are provided as standard. The 3B LASER is mobile and can be used anywhere in your practice. A practical mount makes it possible to mount the instrument on existing tables or carts in a few seconds. Optionally, you can also order an attractive side table. For particularly small rooms a wall mount is included in the scope of delivery. Those who desire to use the same 3B LASER instrument in several rooms must only pull the laser unit out of the patented mount and to insert it in an additional mount in the next room. This Painless 3B LASER can be employed for nearly all acupuncture treatments and up to 12 acupuncture points can be simultaneously stimulated. Knee and back pains as well as headaches or migraines and allergies are the most common indications. The treatment times and the point selection criteria are equivalent to those of classical acupuncture. The 3B LASER can help treat a variety of different disease. For Orthopedics, the 3B LASER helps treat Tendinoses, Chondropathies, Aseptic osteonecroses, Oedemas, Fractures and Rheumatic joint diseases. For Dermatology, the 3B LASER helps treat Wound healing disorders, Neurodermitis, Common acne, Herpes and Age spots. For Pediatrics, the 3B LASER helps treat Hay fever, Headaches, Bronchitis, Allergic asthma, Eczemas/Neurodermitis, Wart irradiation and Enuresis.

The Chattanooga CUBE 3 is a laser therapy system that provides pain relief and promotes deep tissue penetration without added heat. This non-opioid treatment alternative is used to aid patients with acute or chronic pain and inflammation. The CUBE 3 features 3 wavelengths (15 W ISP-12W-CW) and a standard lens. The LCD, high-definition, full-color screen offers excellent visibility even with strong ambient light. Use the laser for stimulating and promoting tissue growth and repair at the cellular level. The device's compactness and light weight (under 3 lbs), allows therapists to perform treatments wherever they choose. Included with the standard accessories are the Zoom Optical, Distal piece, Optical Fiber, Goggles and Dark Goggles.

The Chattanooga CUBE 4 is a laser therapy system that provides pain relief and promotes deep tissue penetration without added heat. This non-opioid treatment alternative is used to aid patients with acute or chronic pain and inflammation. The CUBE 4 features 4 wavelengths (20 W ISP-15W-CW) and a standard lens. The LCD, high-definition, full-color screen offers excellent visibility even with strong ambient light. Use the laser for stimulating and promoting tissue growth and repair at the cellular level. The device's compactness and light weight (under 3 lbs), allows therapists to perform treatments wherever they choose. Included with the standard accessories are the Zoom Optical, Distal piece, Optical Fiber, Goggles and Dark Goggles.

The Chattanooga CUBE 4 is a laser therapy system that provides pain relief and promotes deep tissue penetration without added heat. This non-opioid treatment alternative is used to aid patients with acute or chronic pain and inflammation. The CUBE 4 features 4 wavelengths (20 W ISP-15W-CW) and a dynamic lens. The LCD, high-definition, full-color screen offers excellent visibility even with strong ambient light. Use the laser for stimulating and promoting tissue growth and repair at the cellular level. The device's compactness and light weight (under 3 lbs), allows therapists to perform treatments wherever they choose. Included with the standard accessories are the Zoom Optical plus, Distal piece, Optical Fiber plus, Goggles and Dark Goggles.

The Chattanooga CUBE Optical fiber is an additional accessory to the CUBE that extends light signals from the laser with very little loss of strength.

The Chattanooga CUBE Zoom Optical is an additional accessory to the CUBE that provides a better performance and more uniform therapy.

The Chattanooga CUBE Distal is an additional accessory to the CUBE that provides a better performance.

The Chattanooga CUBE Goggles is an additional accessory to the CUBE that provides protection against the light emitted from the laser.

The Chattanooga CUBE Warning Sign is an optional accessory to the CUBE that provides a safety warning for those using the laser.

The Chattanooga CUBE Power Supply is an additional accessory to the CUBE that provides power for the CUBE.

The Chattanooga CUBE Power Cord is an additional accessory to the CUBE that connects the power supply to the CUBE.

The Chattanooga CUBE ENT Handpiece is an optional accessory to the CUBE that provides a better performance.

The Chattanooga CUBE Optical Plus is an additional accessory to the CUBE 4 Plus that makes treating extended areas easier.

The Chattanooga CUBE Trolley is a light and mobile transport that features a magnetic plate to improve stability when moving the mounted CUBE device.

The Chattanooga CUBE Extend Plus is an optional accessory to the CUBE and features a 100 mm diameter that is ergonomic and easy to position. It is equipped with special optics that deliver energy uniformly across the entire treatment area and allows hands-free sessions without the risk of overheating. The CUBE Extend Plus is equipped with an articulated swivel arm and with a removable head with housing for the laser beam to treat larger areas.

The Chattanooga CUBE Transport Case is an optional accessory to the CUBE that protects the device and makes it easier to carry the device around.

The Chattanooga CUBE Dark Goggles is an additional accessory to the CUBE that provides better protection for those who have more sensativity against the light emitted from the laser.

The Chattanooga CUBE Child Goggles is an optional accessory to the CUBE that provides protection for children against the light emitted from the laser.
